MRCOOL 24K BTU Hyper Heat Central Ducted System, CENTRAL-24-HP-230A00
$2,988.00

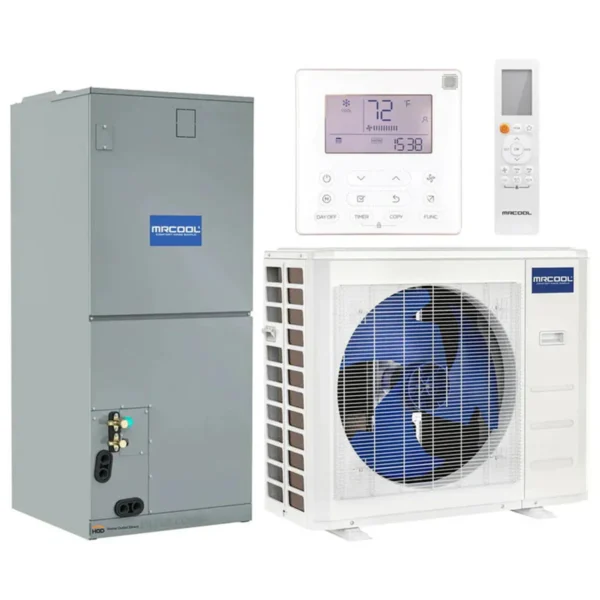

24K MRCOOL® Hyper Heat Central Ducted Complete System
Out of stock
- Fast, Free Shipping
- 30-Day Money-back Guarantee
- Payment Methods
Discover unparalleled temperature control with the MRCOOL 24K BTU Hyper Heat Central Ducted System. This exceptional model boasts an impressive SEER2 rating of up to 17.4, ensuring remarkable energy efficiency to satisfy your heating and cooling requirements in any climate.
Enjoy the ease of installation with this user-friendly system. An HVAC professional can seamlessly integrate this unit into your home, facilitated by its compatibility with the MRCOOL No-Vac Quick Connect Line Set. This innovative feature is pre-charged with eco-friendly R410-A refrigerant, eliminating the need for tedious vacuuming or welding, while also providing resistance to kinking.

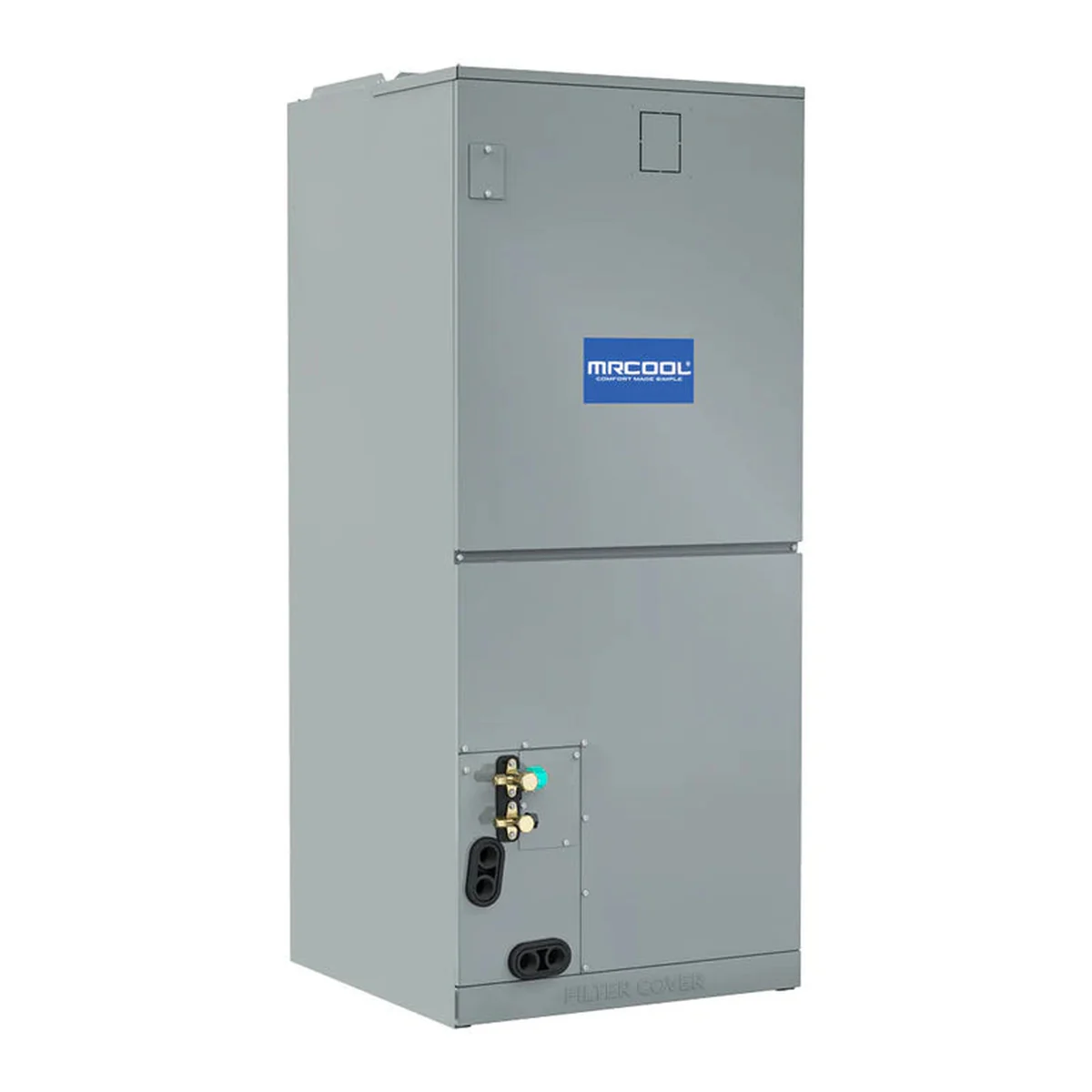

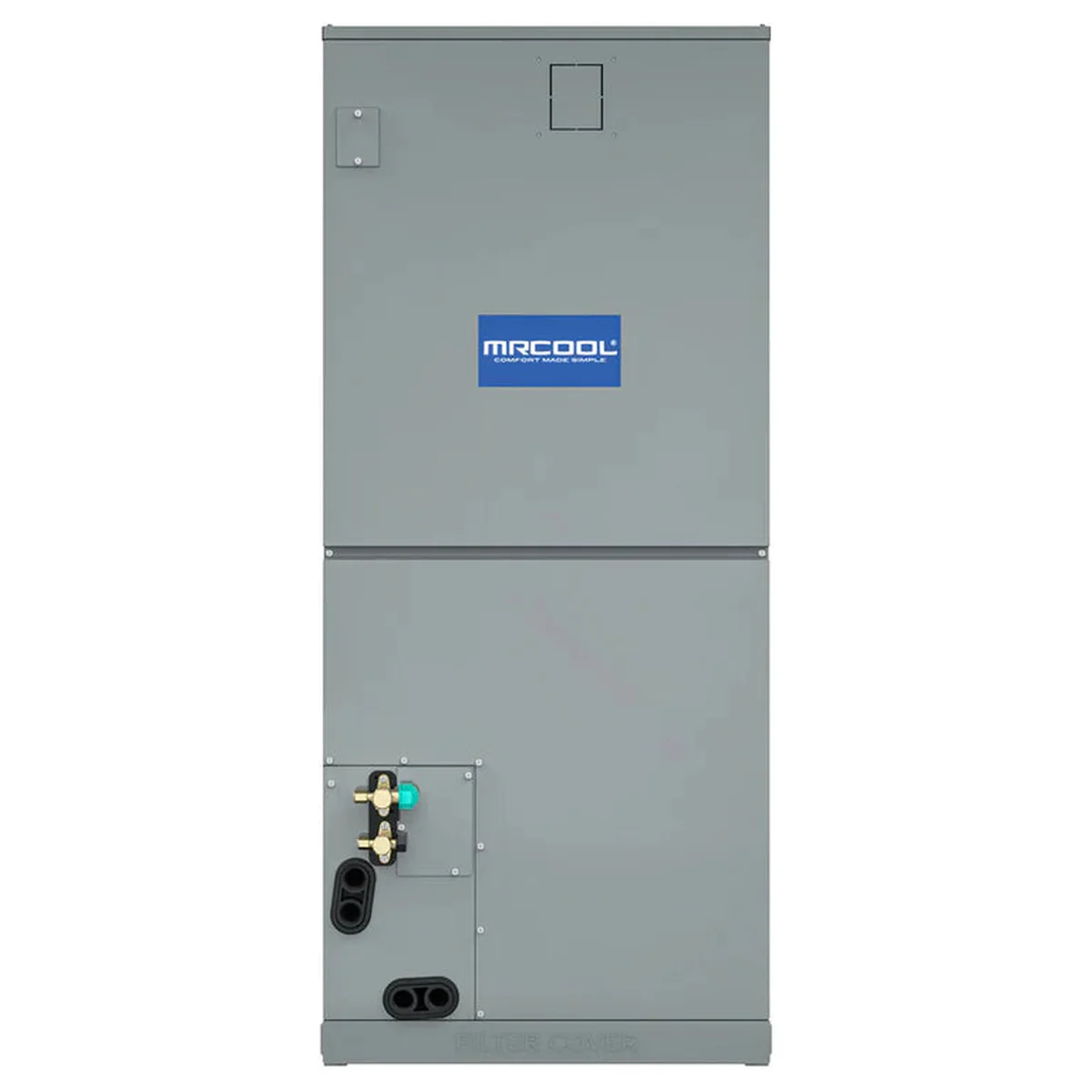

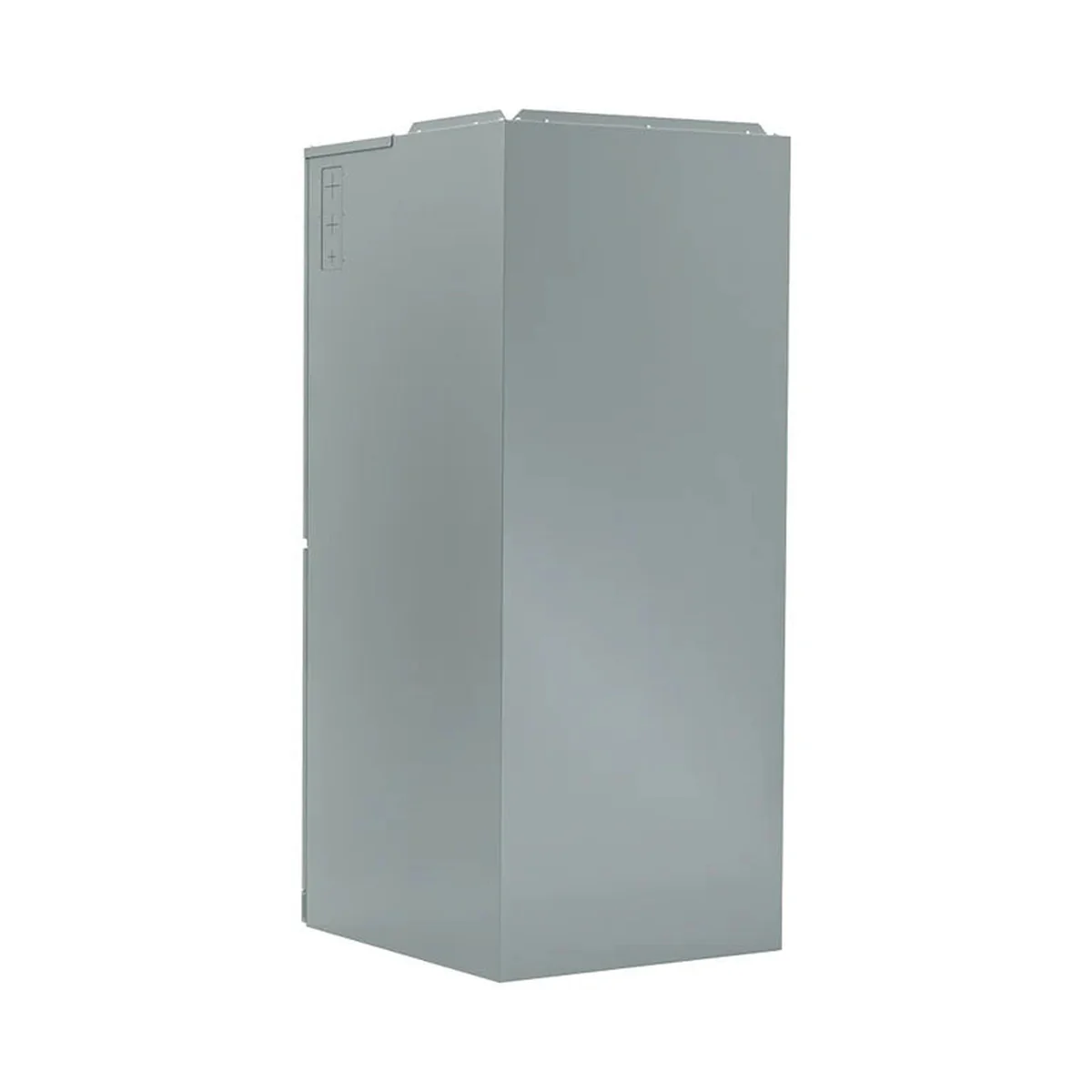

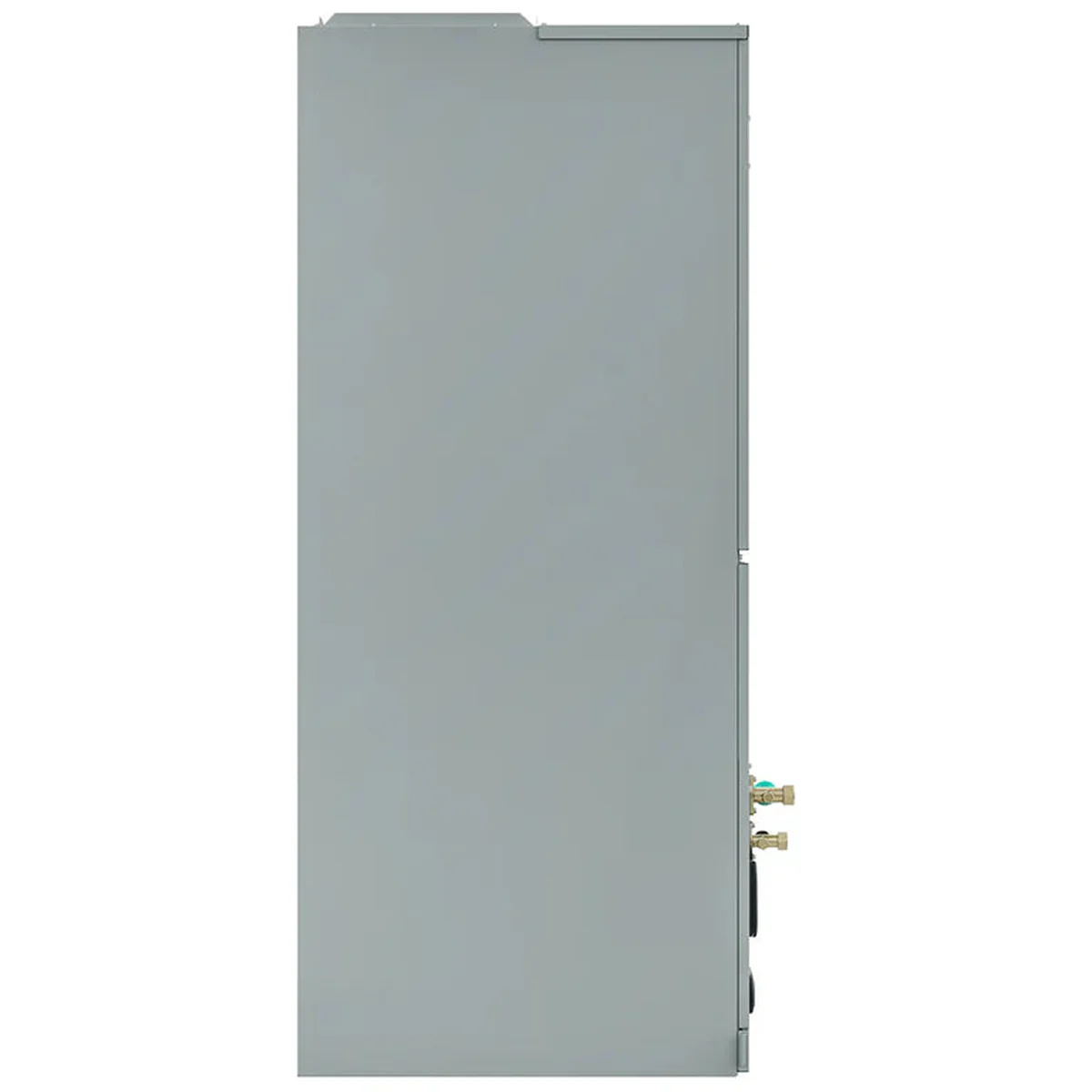

The air handler’s versatile design enables it to fit effortlessly into various configurations, offering flexibility for upflow, downflow, or horizontal setups. If additional heating is required, an optional heat kit is conveniently available for purchase.
Constructed from sturdy painted galvanized steel, this unit combines durability with practicality. Its side-discharge design, slide-out blower, and removable filters simplify maintenance tasks. Additionally, it features a self-diagnostics panel for straightforward troubleshooting.

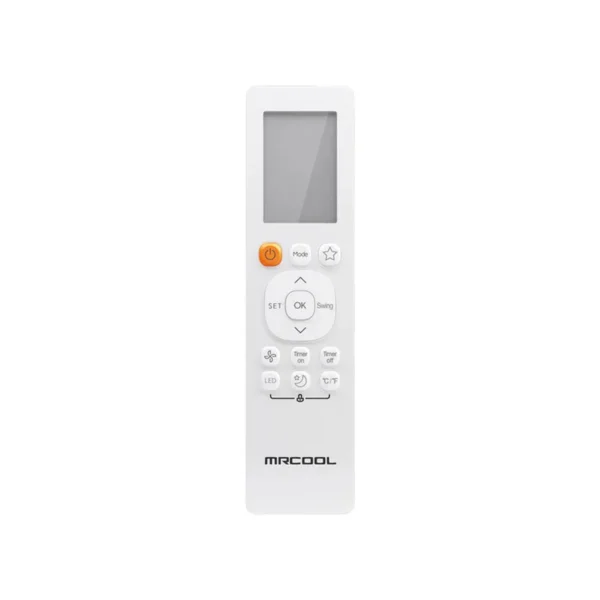

Enjoy peace of mind with the included 10-year parts and labor warranty, reflecting MRCOOL’s confidence in the reliability of this unit. There is no need for registration to activate the labor warranty. Moreover, with both a wired thermostat and a wireless remote included, managing your comfort has never been easier. Experience the MRCOOL difference today!
Key Features
- Energy Efficient:Â This heat pump system delivers an outstanding SEER2 rating of up to 17.4.

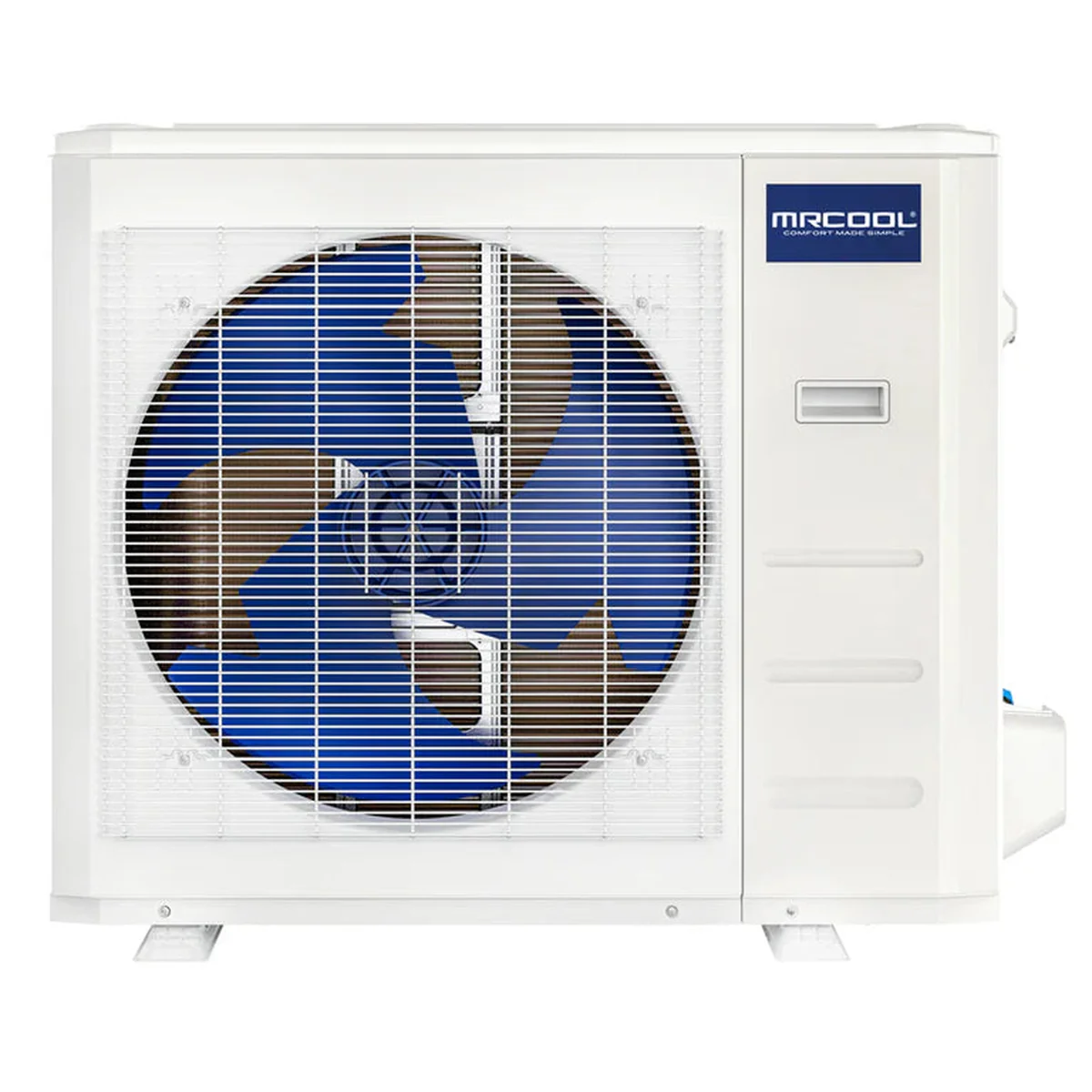

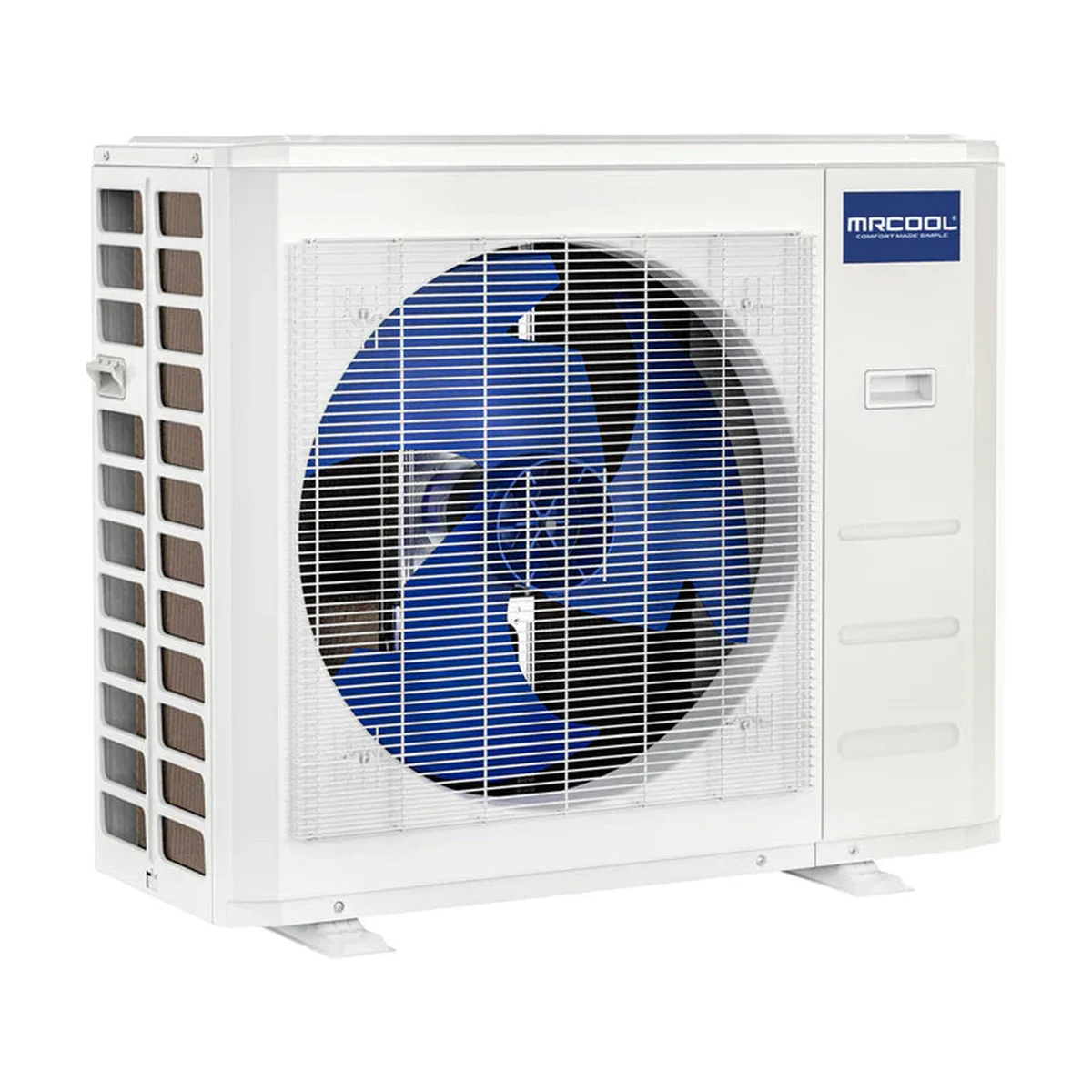

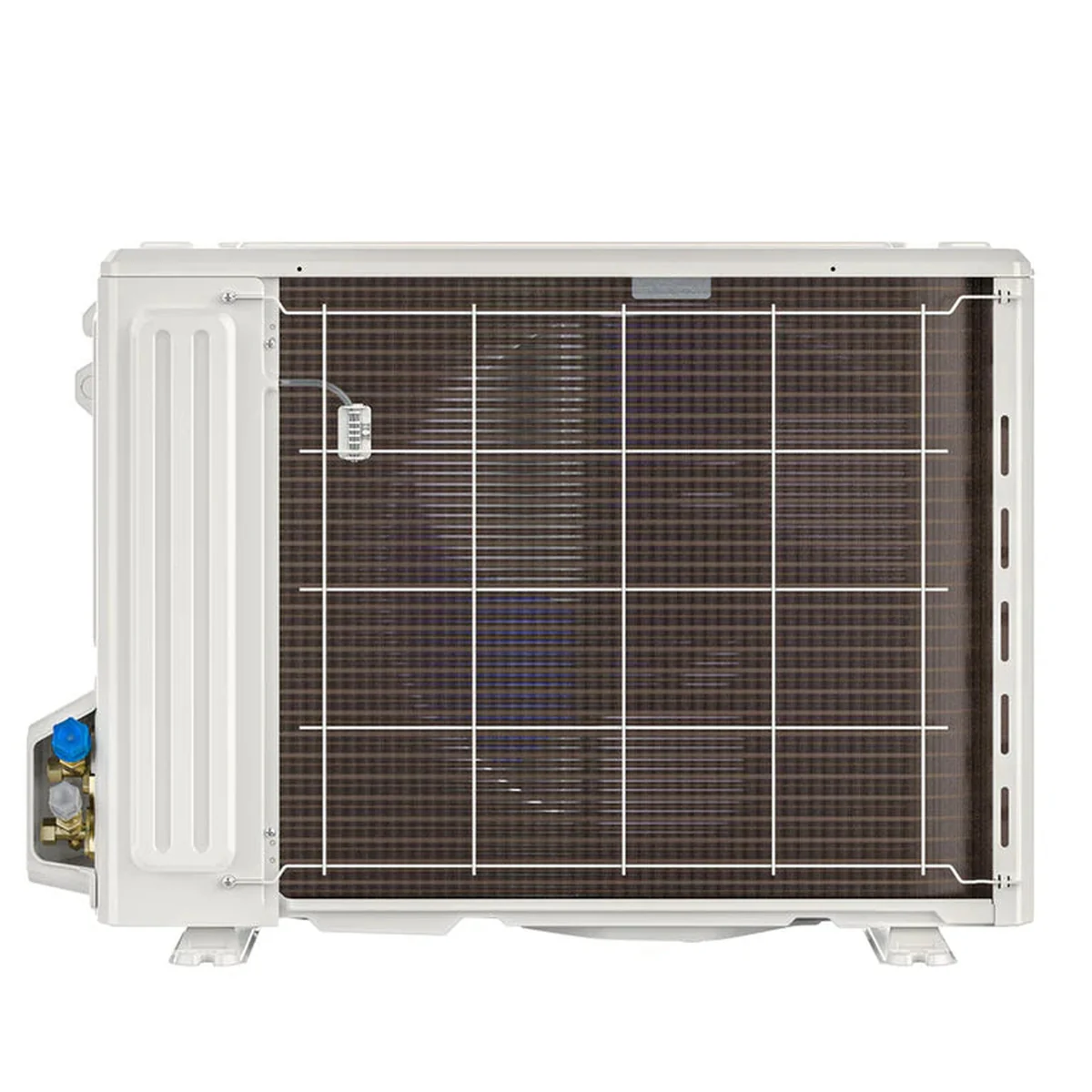

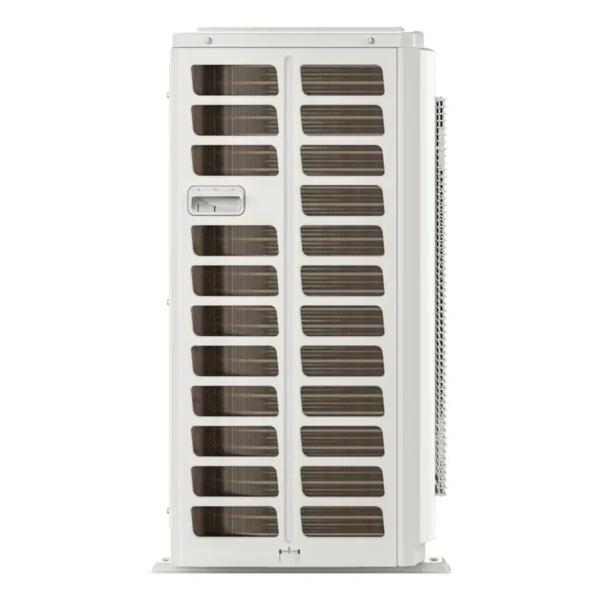

- Extreme Temperature Performance: Perfect for environments with extreme temperatures, this condenser operates effectively in outdoor conditions ranging from -22°F to 122°F.
- Modular Home Friendly:Â The Air Handler is specifically designed to meet high static requirements for manufactured and modular homes.
- Multi-Positional:Â This unit is compatible with upflow, downflow, and horizontal configurations.

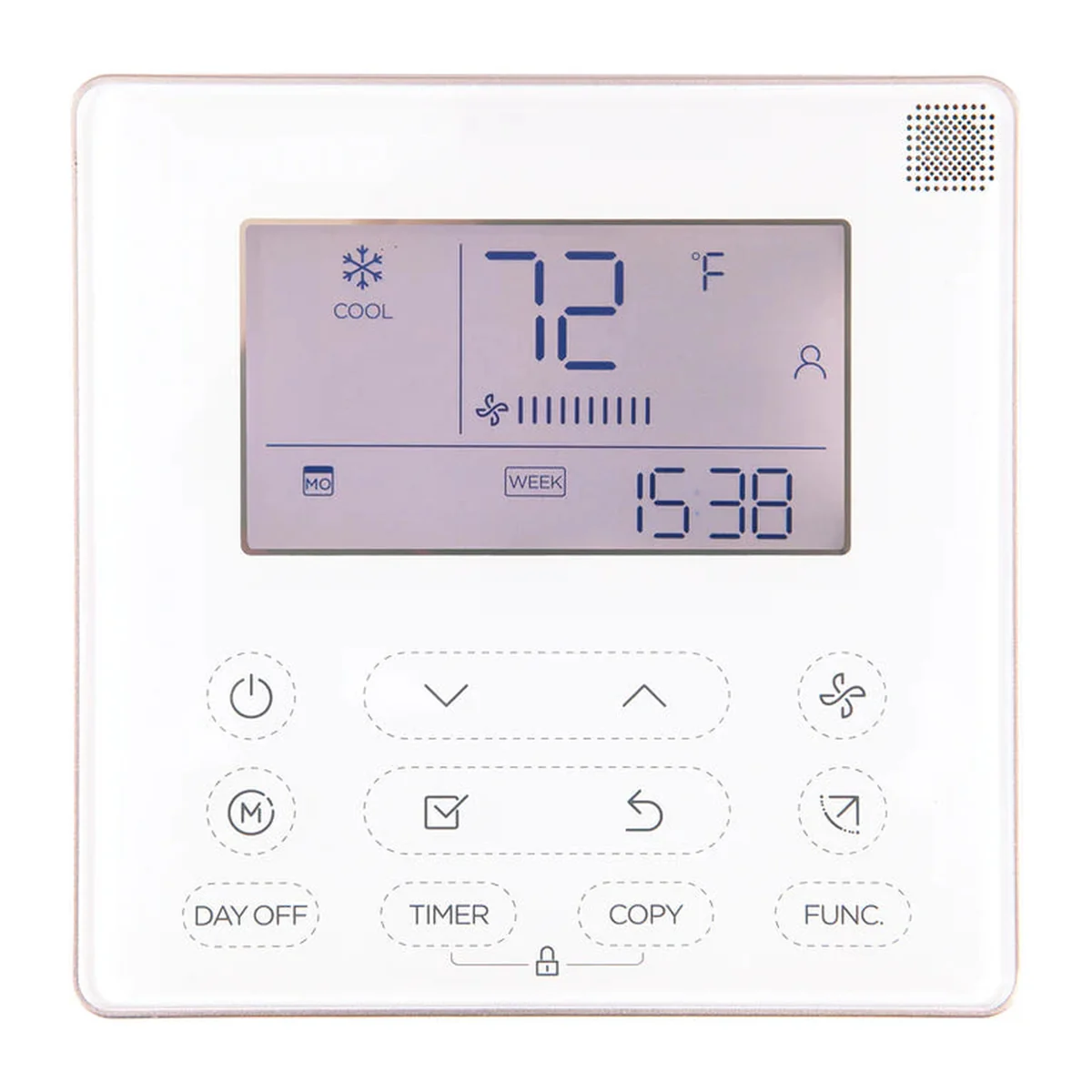

- Thermostat and Remote Included:Â The included wired thermostat offers a variety of settings to maintain your desired home temperature.
- Buy Worry-Free:Â This system comes with a standard 10-year parts and labor warranty, along with a 10-year compressor warranty.
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Our best Products
-
Specifications and Dimensions
Condenser Dimensions 37.24″W x 16.14″D x 31.89″H Condenser Weight 136.69 lbs Air Handler Dimensions 21.02″W x 17.52″D x 45″H Air Handler Weight 105.60 lbs SEER2 17.4 EER2 11.7 HSPF2 HSPF2-4/2-5: 10/8 Cooling Capacity 24,000 BTU Heating Capacity 24,000 BTU Condenser Electrical Requires a minimum of 208-230V/60HZ/20.5 to 35A (please check your home meets this electrical requirement prior to purchase) Air Handler Electrical Requires a minimum of 208-230V/60HZ/4 to 15A (please check your home meets this electrical requirement prior to purchase) Coverage Area 1,000 square feet Refrigerant Type R410A Refrigerant Volume 102.29 oz Condenser Decibel Rating 62 Air Handler Decibel Rating 33 to 39 Air Flow Direction Downflow, Upflow, Horizontal Left, Horizontal Right Cool Mode – Outdoor Operating Temperature Range 5°F to 122°F Heat Mode – Outdoor Operating Temperature Range -22°F to 75°F Room Temperature Cool: 61°F to 90°F
Heat: 32°F to 86°F
Dry: 50°F to 90°FLine Set Included No Max Line Set Length 164.04 ft Liquid Line Size 3/8 in Suction Line Size 3/4 in Auxiliary Heater Included No Auxiliary Heater Available Yes Auxiliary Heater Sizes 5kw, 8kw, 10kw, 15kw Adjustable Thermostat Yes Modes Cool, Heat, Dry, Auto, Fan Includes Remote, Wired Thermostat App Compatibility No Certificates AHRI Warranty 10 years parts and labor -
Information and Guides
-
Handling Line Sets
When installing your MRCOOL system, handle refrigerant lines carefully to ensure optimal performance and prevent damage.
Bending the Copper Lines: Maintain a minimum 4-inch bend radius and use smooth curves instead of sharp angles to protect the lines and ensure proper refrigerant flow.
Avoid Repeated Bending: Bending copper lines more than three times can harden and weaken them, increasing the risk of breakage. Handle with care and minimize adjustments.
For best results, use gradual bends and consult a licensed professional or our support team if needed.
