MRCOOL 60K BTU Hyper Heat Central Ducted Complete System – 15.3 SEER2, CENTRAL-60-HP-230A00
$4,086.00
60K MRCOOL® Hyper Heat Central Ducted Complete System
Out of stock
- Fast, Free Shipping
- 30-Day Money-back Guarantee
- Payment Methods
Discover unparalleled temperature control with the MRCOOL 60K BTU Hyper Heat Central Ducted Complete System. This exceptional model boasts an impressive SEER2 rating of up to 15.3, ensuring remarkable energy efficiency to satisfy your heating and cooling requirements, regardless of the season.
Enjoy effortless installation with this user-friendly system. An HVAC professional can quickly incorporate this unit into your residence, thanks to its compatibility with the MRCOOL No-Vac Quick Connect Line Set. This innovative feature, pre-charged with environmentally friendly R410-A refrigerant, negates the need for tedious vacuuming or welding, while providing enhanced protection against kinking.

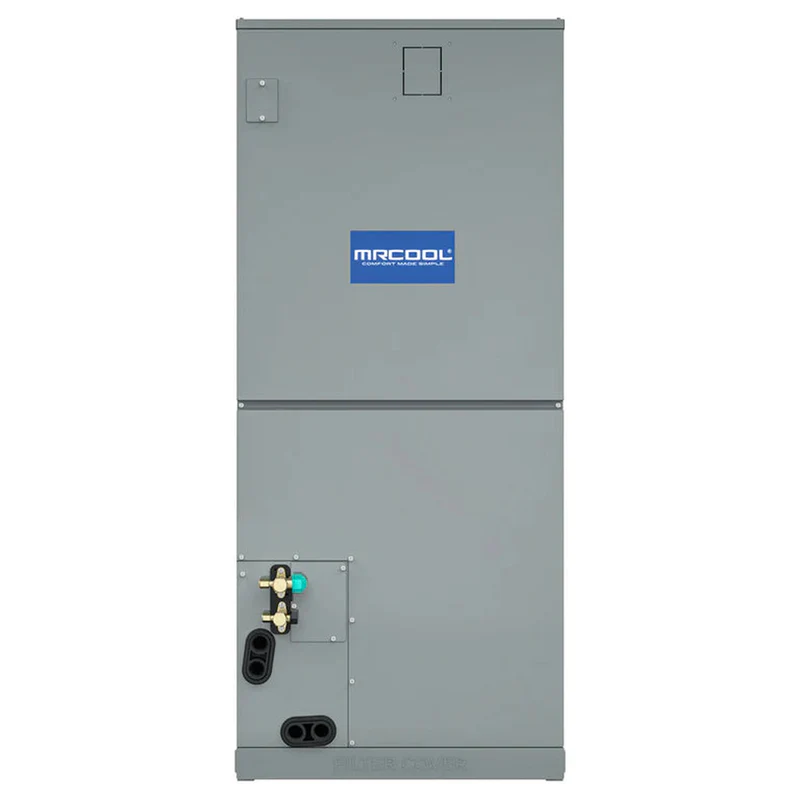

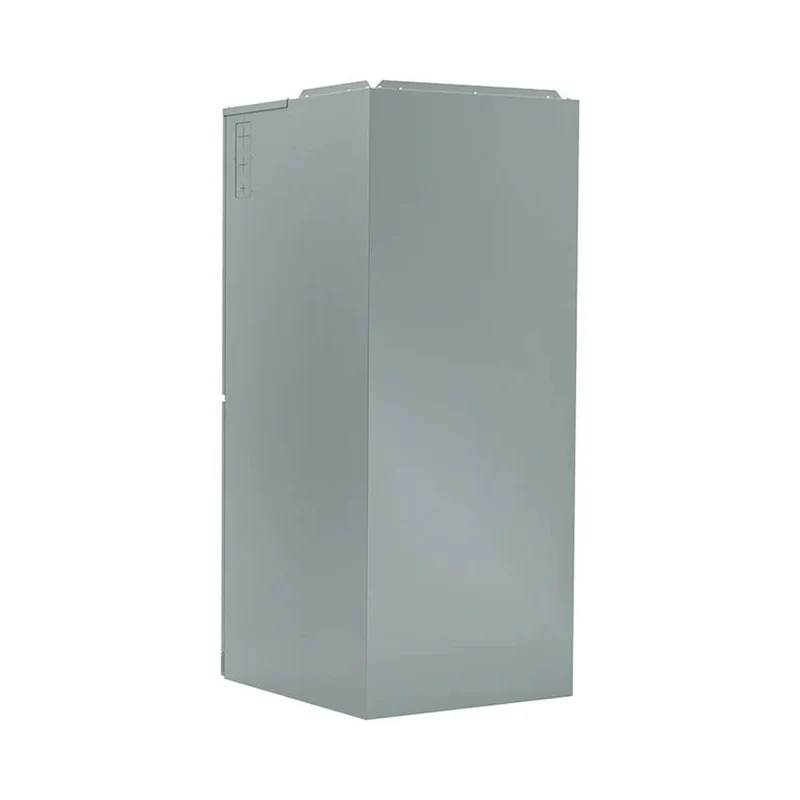

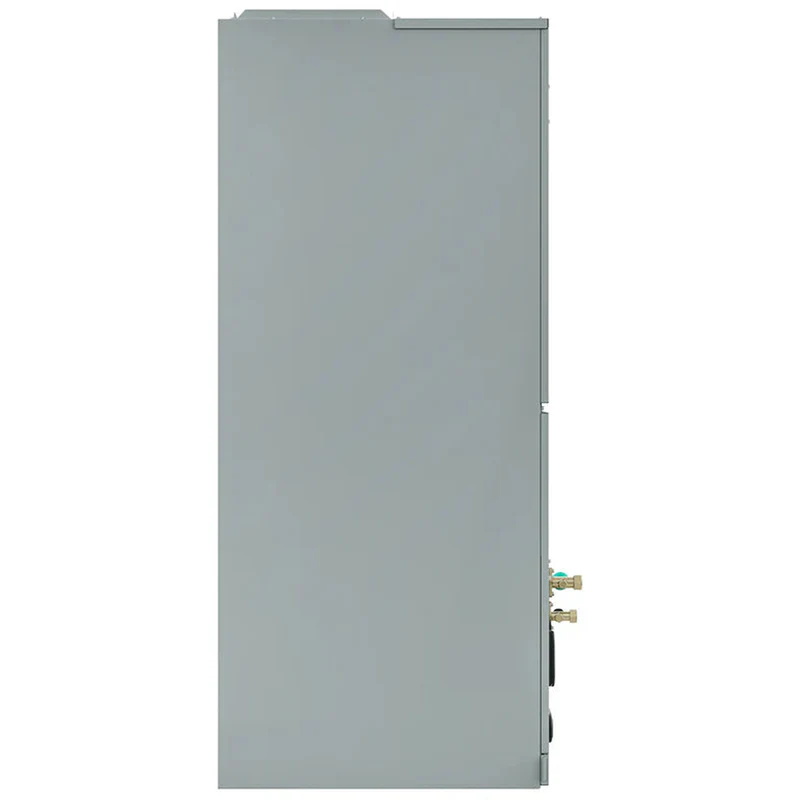

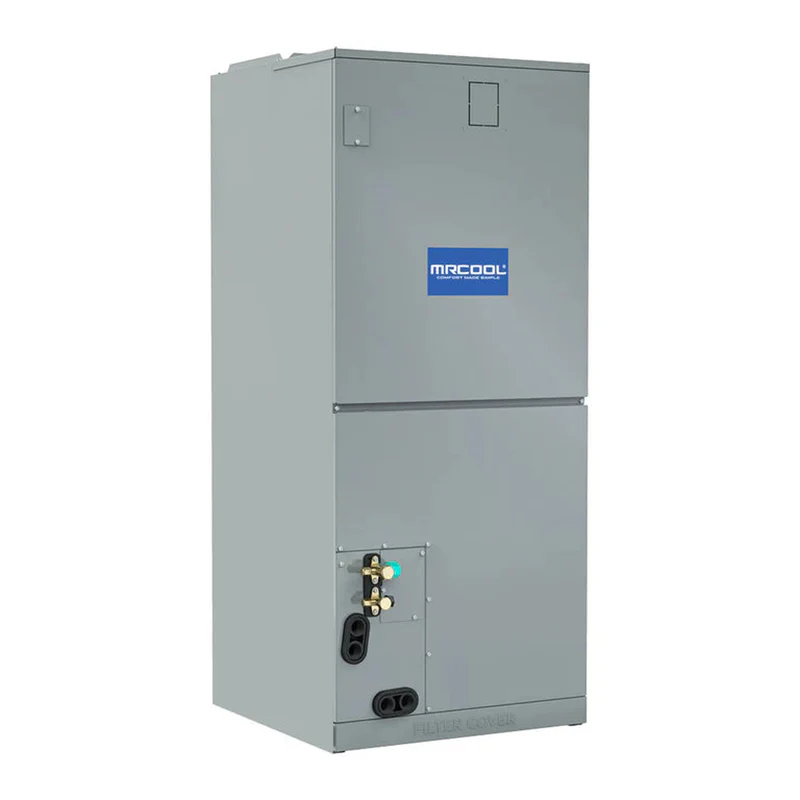

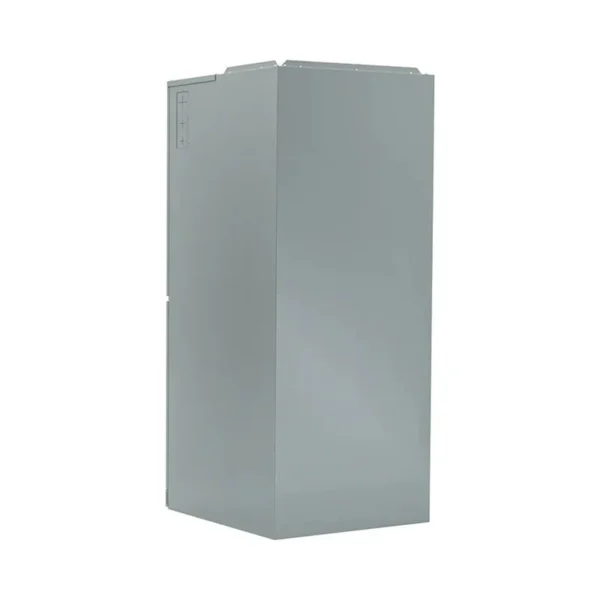

The air handler’s versatile design allows it to integrate seamlessly into various configurations, offering flexibility whether you require upflow, downflow, or horizontal setups. Should you need extra heating capacity, an optional heat kit is available for purchase.
Crafted from sturdy painted galvanized steel, the MRCOOL 60K BTU Hyper Heat Central Ducted Complete System combines durability with practicality. Its side-discharge design, slide-out blower, and removable filters simplify maintenance tasks. Additionally, it features a self-diagnostic panel to facilitate easy troubleshooting.
Enjoy peace of mind with the included 10-year parts and labor warranty, reflecting MRCOOL’s commitment to the unit’s dependability. No registration is required to activate the labor warranty. Furthermore, with the inclusion of a wired thermostat and wireless remote, managing your comfort has never been easier. Experience the excellence of MRCOOL today!
Key Features
- Energy Efficient:Â This heat pump system achieves up to 15.3 SEER2.

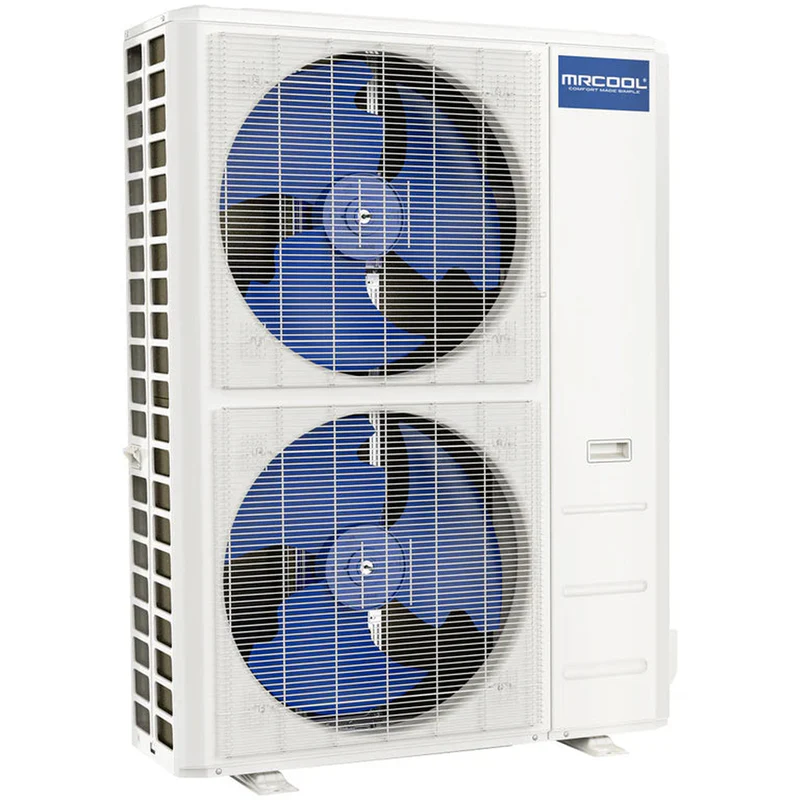

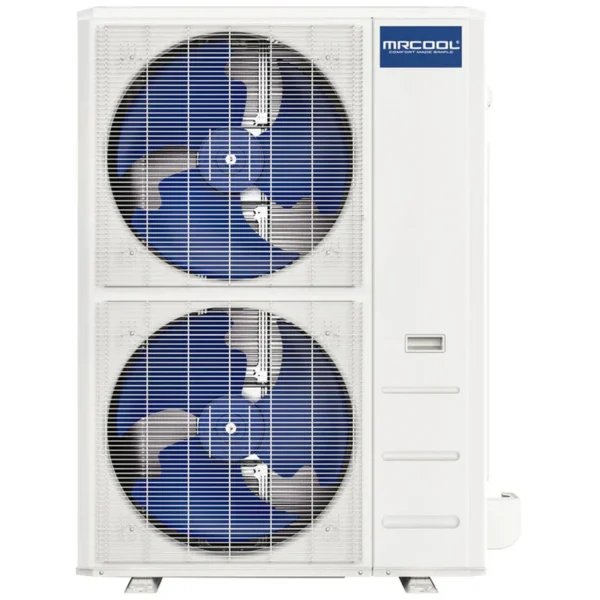

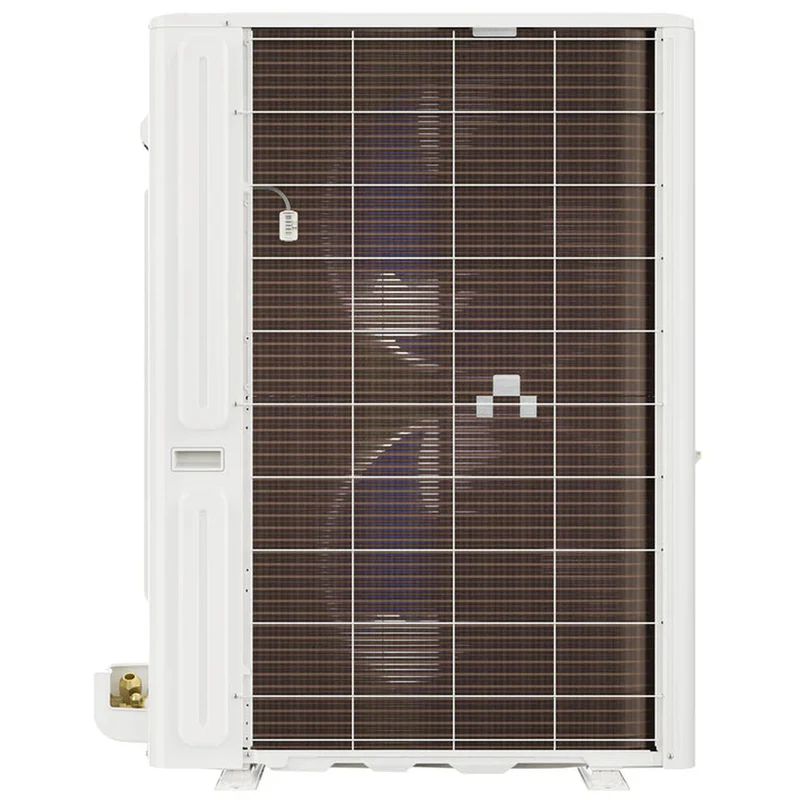

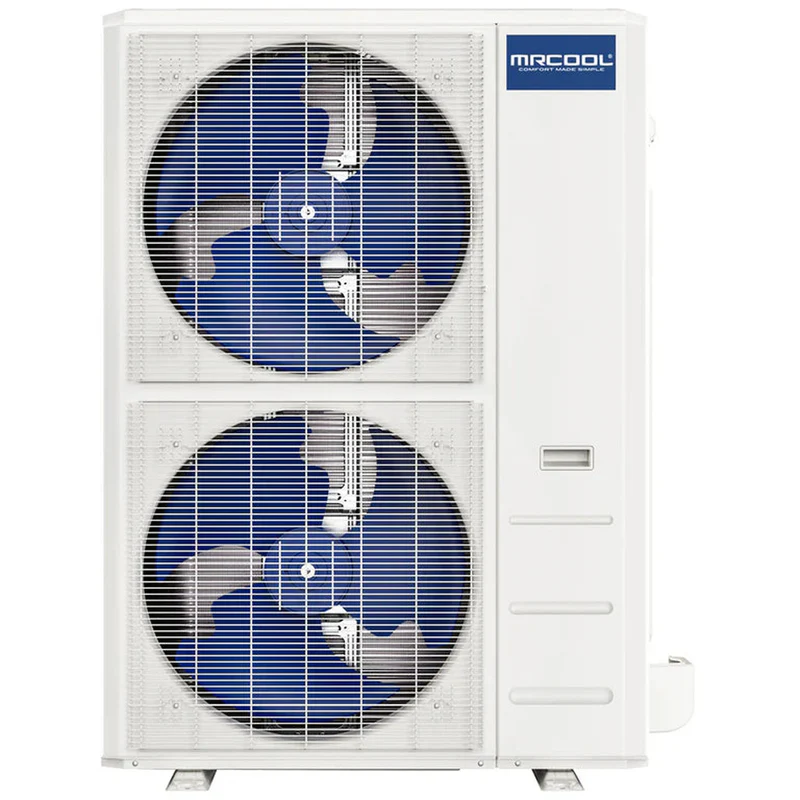

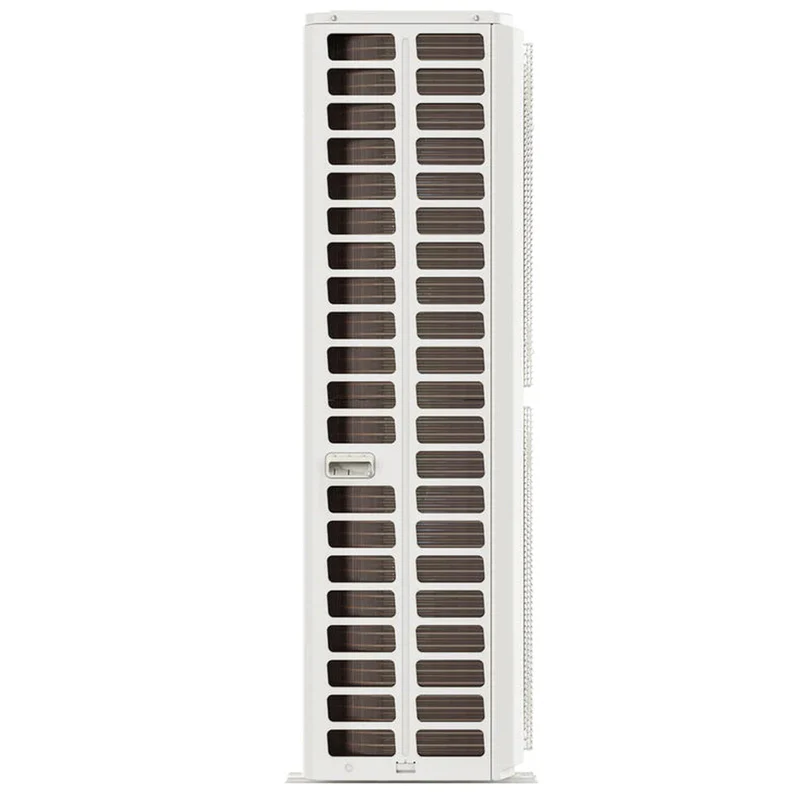

- Extreme Temperature Performance: Ideal for environments with extreme temperatures, this condenser operates efficiently in outdoor conditions ranging from -22°F to 122°F.
- Modular Home Friendly:Â The air handler is designed to meet the high static requirements of manufactured and modular homes.
- Multi-Positional:Â The unit supports upflow, downflow, and horizontal configurations.

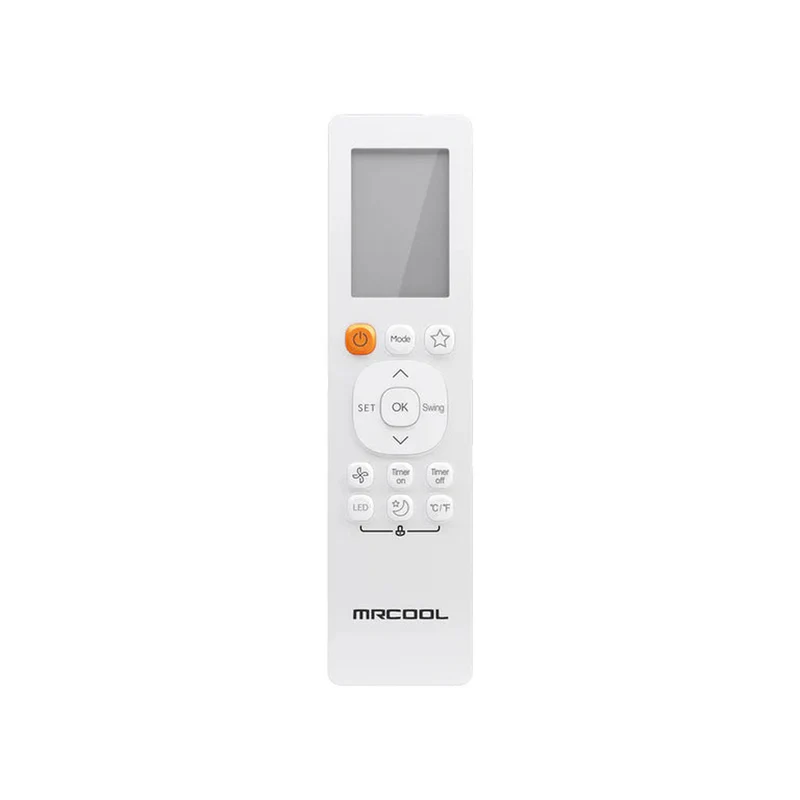

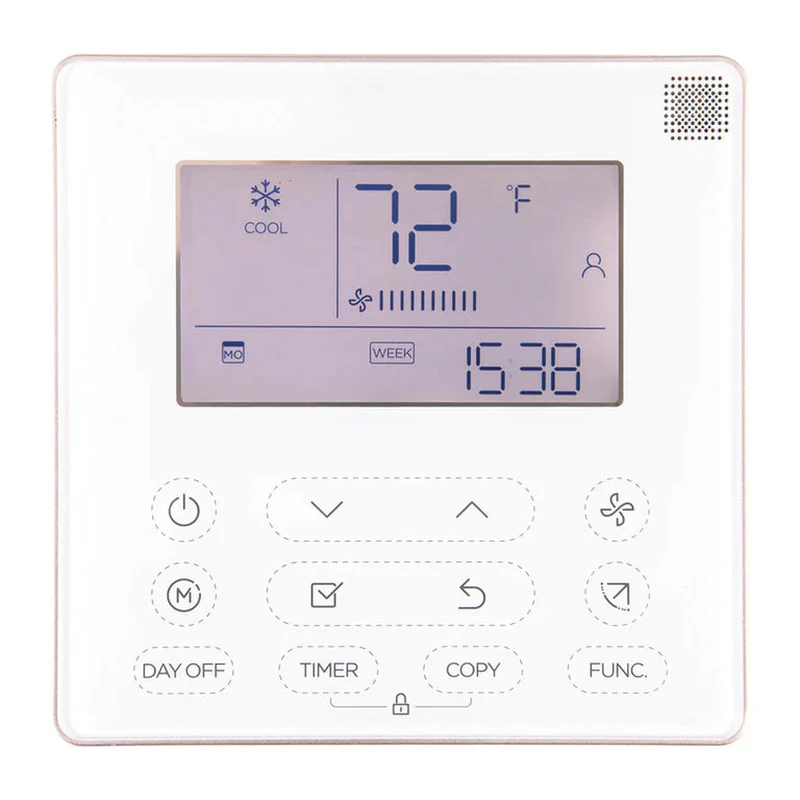

- Thermostat and Remote Included:Â The wired thermostat offers various options to maintain your desired home temperature.
- Buy Worry-Free:Â This system includes a standard 10-year parts and labor warranty, along with a 10-year compressor warranty.
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Our best Products
-
Specifications and Dimensions
Condenser Dimensions 37.48″W x 16.34″D x 52.48″H Condenser Weight 240.96 lbs Air Handler Dimensions 21.02″W x 24.49″D x 52.99″H Air Handler Weight 164.02 lbs SEER2 15.3 EER2 8.8 HSPF2 HSPF2-4/2-5: 9.4/7.6 Cooling Capacity 55,000 BTU Heating Capacity 59,000 BTU Condenser Electrical Requires a minimum of 208-230V/60HZ/44 to 50A (please check your home meets this electrical requirement prior to purchase) Air Handler Electrical Requires a minimum of 208-230V/60HZ/9 to 15A (please check your home meets this electrical requirement prior to purchase) Coverage Area 2,500 square feet Refrigerant Type R410A Refrigerant Volume 169.32 oz Condenser Decibel Rating 63.5 Air Handler Decibel Rating 41.5 to 51 Air Flow Direction Downflow, Upflow, Horizontal Left, Horizontal Right Cool Mode – Outdoor Operating Temperature Range 5°F to 122°F Heat Mode – Outdoor Operating Temperature Range -22°F to 75°F Room Temperature Cool: 61°F to 90°F
Heat: 32°F to 86°F
Dry: 50°F to 90°FLine Set Included No Max Line Set Length 213.25 ft Liquid Line Size 3/8 in Suction Line Size 7/8 in Auxiliary Heater Included No Auxiliary Heater Available Yes Auxiliary Heater Sizes 8kW, 10kW, 15kW, 20kW Adjustable Thermostat Yes Modes Cool, Heat, Dry, Auto, Fan Includes Remote, Wired Thermostat App Compatibility No Certificates AHRI Warranty 10 years parts and labor -
Information and Guides
-
Handling Line Sets
When installing your MRCOOL system, handle refrigerant lines carefully to ensure optimal performance and prevent damage.
Bending the Copper Lines: Maintain a minimum 4-inch bend radius and use smooth curves instead of sharp angles to protect the lines and ensure proper refrigerant flow.
Avoid Repeated Bending: Bending copper lines more than three times can harden and weaken them, increasing the risk of breakage. Handle with care and minimize adjustments.
For best results, use gradual bends and consult a licensed professional or our support team if needed.
