Sale!

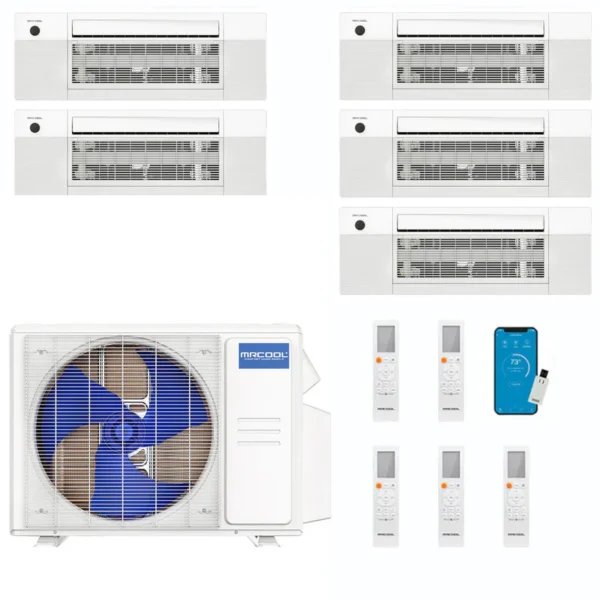

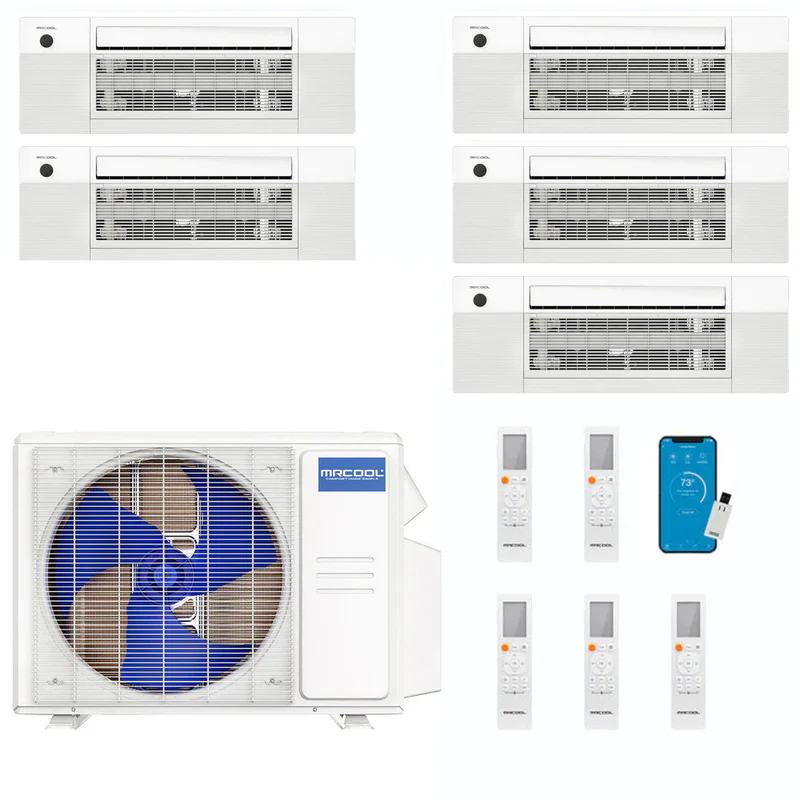

MRCOOL DIY 5th Gen 5-Zone 30,000 BTU Ceiling Cassette Ductless Mini Split Air Conditioner & Heat Pump (6K+6K+6K+6K+6K), DIY5-BC-36HP0606060606

Original price was: $11,378.75.Current price is: $9,103.00.

SKU DIY5-BC-36HP0606060606 Categories DIY Mini Splits, Mini Splits

Take full control of your indoor climate with the MRCOOL DIY 5th Gen Multi-Zone Mini Split System – a cost-effective and straightforward solution for achieving powerful, energy-efficient heating and cooling without professional installation.

Three Rooms, Customized Comfort: Effectively heat or cool five separate areas that are up to 200 sq. ft., 200 sq. ft., 200 sq. ft., 200 sq. ft., and 200 sq. ft., with independent temperature settings tailored to individual preferences.
DIY Made Simple: Eliminate costly installation fees – no HVAC certification or specialized equipment needed. If you’re comfortable with standard hand tools, you can handle the setup yourself.
Efficiency That Pays Off: Offering up to 23 SEER2 cooling efficiency and 9.9 HSPF2-4heating capability, this system is designed to maximize energy savings throughout the year.
Dependable in Every Season: Engineered for reliability, it maintains strong heating performance even in temperatures as low as -13°F.
Comprehensive Warranty Coverage: Protected by a 7-Year Compressor Warranty and 5-Year Parts Warranty for peace of mind.

From peak summer heat to extreme winter cold, the MRCOOL DIY Mini Split provides consistent comfort while helping you keep utility costs under control. Practical. Reliable. Efficient.

Add a review

Currently, we are not accepting new reviews

0.0

Based on 0 reviews

5 star		0%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Sorry, no reviews match your current selections

Our best Products

MRCOOL High Altitude Propane Conversion Kit for Signature Series Single Stage Gas Furnace, MLP1SH

$244.00

MRCOOL Propane Conversion Kit for Signature Series Air Conditioner & Gas Package Unit, MLP1PSA

$75.00

MRCOOL Propane Conversion Kit for Signature Series Single Stage Gas Furnace, MLP1SS

$221.00

MRCOOL Signature Down Flow Kit for 3 to 5 ton Air Handlers, MSHDK3660

$186.00

MRCOOL Signature Down Flow Kit for 1.5 to 2.5 Ton Air Handlers, MSHDK1830

$154.00

MRCOOL Bluetooth Mini-Stat Thermostat for Ductless Mini Split in White, MTSK02

$74.00

MRCOOL Smart Wi-Fi Mini-Stat (Compatible with MRCOOL Mini-Splits), MST05

$114.00

Specifications and Dimensions

**Condenser**
Product Dimensions	37.24″W x 16.14″D x 31.89″H
Cooling Capacity	36,000 BTU
Heating Capacity	36,000 BTU
Zone Capacity	4
Cool Mode – Outdoor Operating Temperature Range	5F ~ 122F
Heat Mode – Outdoor Operating Temperature Range	-13F ~ 75.2F
SEER	21.5
EER	10.5
Voltage	Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty	7 Years Replacement on Condenser, 5 Years Parts

**Air Handler 9K BTU**
Product Dimensions	31.57″W x 7.44″D x 11.69″H
Mount Type	Wall
Cooling Capacity	9,000 BTU
Heating Capacity	9,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto – auto selects from Cool, Heat or Fan-Only Dry – dehumidify Cool Heat Fan Only Quiet Sleep

**Air Handler 12K BTU**
Product Dimensions	31.57″W x 7.44″D x 11.69″H
Mount Type	Wall
Cooling Capacity	12,000 BTU
Heating Capacity	12,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto – auto selects from Cool, Heat or Fan-Only Dry – dehumidify Cool Heat Fan Only Quiet Sleep

Coverage Area
When considering the purchase of our cooling or heating system, it’s essential to determine the appropriate BTU output based on the square footage of your space. Please refer to the following coverage chart for guidance:
- Square Feet: 180-375 | BTU = 9K
- Square Feet: 376-500 | BTU = 12K
- Square Feet: 501-750 | BTU = 18K
- Square Feet: 751-1,000 | BTU = 24K
- Square Feet: 1,001-1,500 | BTU = 36K
Keep in mind that additional factors, such as insulation quality, ceiling height, and the presence of appliances, can influence performance. For personalized assistance in selecting the optimal solution for your needs, don’t hesitate to reach out to our experienced Sales Team.
Handling Line Sets
When installing your MRCOOL system, handle refrigerant lines carefully to ensure optimal performance and prevent damage.

Bending the Copper Lines: Maintain a minimum 4-inch bend radius and use smooth curves instead of sharp angles to protect the lines and ensure proper refrigerant flow.

Avoid Repeated Bending: Bending copper lines more than three times can harden and weaken them, increasing the risk of breakage. Handle with care and minimize adjustments.

For best results, use gradual bends and consult a licensed professional or our support team if needed.
