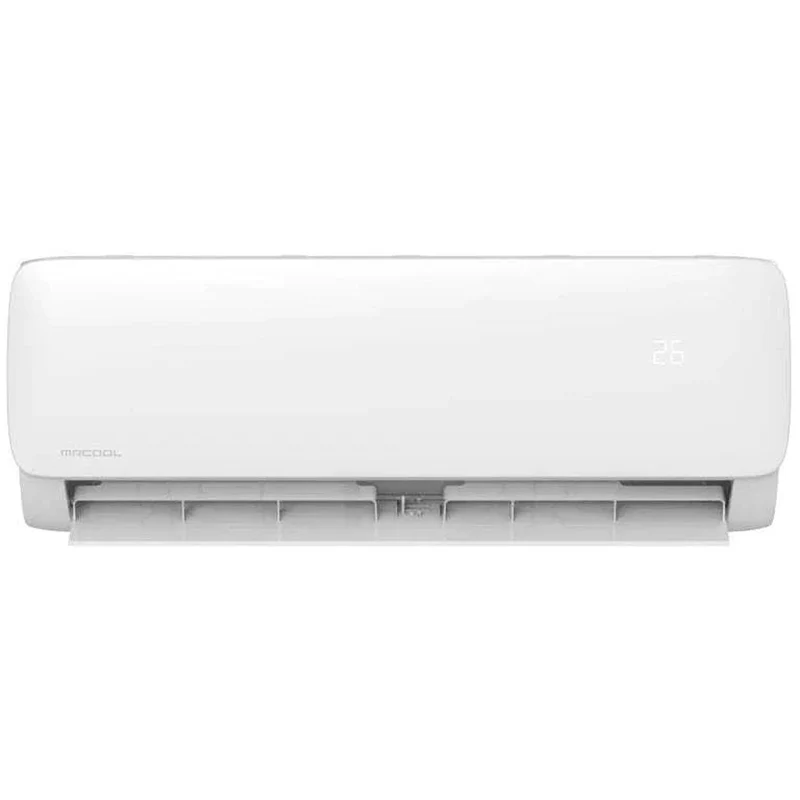

MRCOOL DIY 5th Gen E Star 9K BTU Single Zone Mini Split Air Handler 115V, DIY-09-HP-WMAH-115D25-O
$745.00
MRCOOL® 9k DIY 5th Generation Mini-split Air Handler 115v
SKU
DIY-09-HP-WMAH-115D25-O
Categories Air Handlers, DIY Wall Mounted Air Handlers
- Fast, Free Shipping
- 30-Day Money-back Guarantee
- Payment Methods
Introducing the 5th Generation MRCOOL DIY 9K BTU Single Zone Mini-Split Air Handler, designed to deliver efficient heating and cooling for spaces ranging from 200 to 350 square feet. This system allows for complete climate control with multiple options, including a wireless remote, the SmartHVAC app, and voice command compatibility. Built for reliability and energy efficiency, it is backed by an industry-leading warranty for long-term performance.
- Effortless DIY Installation:Â Simple, tool-free setup with no prior experience required.
- QuickConnect Line Set:Â Compatible with the DIY line sets that are pre-charged with R-454B refrigerant, enabling a fast, vacuum-free installation process.
- Eco-Friendly Refrigerant:Â Utilizes R-454B refrigerant, which has a lower Global Warming Potential (GWP) than R-410A, reducing environmental impact while optimizing efficiency.
- Durable DIYPRO Cable:Â Eliminates the need for electrical conduit while providing enhanced protection against outdoor conditions and wildlife.
- Convenient Wireless Controls:Â Adjust settings using the included remote, SmartHVAC app (available for Apple and Android), or voice commands via Amazon Alexa and Google Assistant.
- Follow Me Function: Ensures consistent comfort by automatically adjusting airflow based on the remote’s location.
- Dry Mode:Â Enhances indoor air quality by reducing excess moisture with built-in dehumidification.
- Comprehensive Warranty Coverage:Â Includes a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty for added peace of mind.
- Certified for Quality and Safety:Â Intertek-listed (5031495) to meet rigorous performance and safety standards.
Designed for ease of use, efficiency, and long-lasting performance, this air handler is an excellent choice for maintaining a comfortable indoor environment year-round.
Add a review
Currently, we are not accepting new reviews
0.0
Based on 0 reviews
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Our best Products
-
Specifications and Dimensions
Dimensions & Weight Dimensions 31.57 W” x 7.44 D” x 11.69 H” Mount Type Wall Weight 24.91 lbs / 11.3 kg Capacity & Performance Cooling Capacity 9,000 BTU EER2 14 SEER2 23.6 Heating Capacity 10,000 BTU HSPF2-4 11.5 HSPF2-5 8.6 Coverage Area 200 – 350 sq ft. Indoor Noise Level (Hi/Mi/Lo) 43.0/39.5/33.5/24.0/18.0 dB(A) Number of Speeds 5 Electrical Requirements Voltage 115V Phase 1 Cycle 60 Hz Max Fuse Breaker 15A Min Circuit Ampacity 3A Refrigerant & Piping Refrigerant Type R-454B Liquid Line Size 1/4″ Suction Line Size 3/8″ Features Fan Only Option Yes Quiet Mode Yes Auto Cool Yes Wifi Compatibility Yes App Compatibility Yes Works with IOS Yes Works with Android Yes Remote Control Included Yes Certifications & Warranty Certifications UL Listed, ETL Listed, Energy Star Certified, AHRI Certified Warranty 7 Years Compressor
5 Years Parts
Extended Limited Lifetime Replacement
*If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty
**The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement. -
