MRCOOL DIY Mini Split – 54,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump, DIY-B-248HP1836

Original price was: $5,198.00.Current price is: $4,726.00.

SKU DIY-B-248HP1836 Categories DIY Mini Splits, Mini Splits

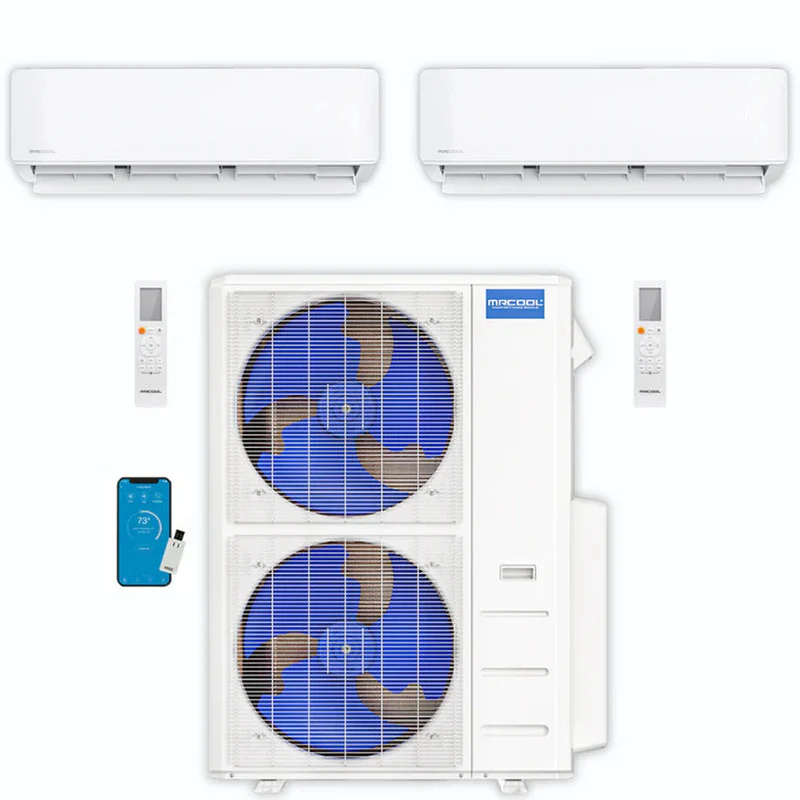

The 4th Generation MRCOOL Mini Split is a versatile and energy-efficient HVAC solution that includes a DIY 48,000 BTU Multi-Zone Condenser, one 18,000 BTU Wall Mounted Air Handler, one 36,000 BTU Wall Mounted Air Handler, and two remotes. Designed for easy self-installation, it offers advanced features and performance suitable for various environments.

Package Includes

MRCOOL DIY Multi-Zone 5-Zone 48K BTU Condenser (DIY-MULTI5-48HP230C)
MRCOOL DIY 4th Generation 18K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi (DIY-18-HP-WMAH-230C25)
MRCOOL DIY 4th Generation 36K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi (DIY-36-HP-WMAH-230C25)

Note: This unit does not include line sets. Make sure to add them to your order!

When all air handlers are operated simultaneously, their combined BTU output will not exceed the 48K BTU rating of the condenser.

Condenser Features

Energy Efficient: Capable of producing a 20.5 SEER efficiency rating when paired with select MRCOOL air handlers.
All-Weather Performance: Continues heating performance at temperatures as low as 5°F.
Lifetime Warranty: Limited lifetime compressor warranty available through the MRCOOL Care Program.

Air Handler (18K BTU) Features

Coverage Area: Effective up to 750 sq. ft.
Versatile Operation: Includes multiple modes such as COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Smart Control: Can be controlled via Apple or Android smartphones using the Smart HVAC app.
Easy Installation: Light and compact design with an included mounting plate for simple installation.

Air Handler (36K BTU) Features

Coverage Area: Effective up to 1,500 sq. ft.
Versatile Operation: Includes multiple modes such as COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Smart Control: Can be controlled via Apple or Android smartphones using the Smart HVAC app.
Easy Installation: Light and compact design with an included mounting plate for simple installation.

Add a review

Currently, we are not accepting new reviews

0.0

Based on 0 reviews

5 star		0%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Sorry, no reviews match your current selections

Our best Products

MRCOOL High Altitude Propane Conversion Kit for Signature Series Single Stage Gas Furnace, MLP1SH

$244.00

MRCOOL Propane Conversion Kit for Signature Series Air Conditioner & Gas Package Unit, MLP1PSA

$75.00

MRCOOL Propane Conversion Kit for Signature Series Single Stage Gas Furnace, MLP1SS

$221.00

MRCOOL Signature Down Flow Kit for 3 to 5 ton Air Handlers, MSHDK3660

$186.00

MRCOOL Signature Down Flow Kit for 1.5 to 2.5 Ton Air Handlers, MSHDK1830

$154.00

MRCOOL Bluetooth Mini-Stat Thermostat for Ductless Mini Split in White, MTSK02

$74.00

MRCOOL Smart Wi-Fi Mini-Stat (Compatible with MRCOOL Mini-Splits), MST05

$114.00

Specifications and Dimensions

Condenser
Product Dimensions	37.48″W x 16.34″D x 52.48″H
Cooling Capacity	48,000 BTU
Heating Capacity	48,000 BTU
Zone Capacity	5
Cool Mode – Outdoor Operating Temperature Range	5F ~ 122F
Heat Mode – Outdoor Operating Temperature Range	5F ~ 75.2F
SEER	20.5
EER	11
Voltage	Requires a minimum of 208V-230V / 60HZ / 40-60A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty	7 Years Replacement on Condenser, 5 Years Parts

Air Handler — 18K BTU
Product Dimensions	42.52″W x 8.90″D x 13.19″H
Mount Type	Wall
Cooling Capacity	18,000 BTU
Heating Capacity	18,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto – auto selects from Cool, Heat or Fan-Only Dry – dehumidify Cool Heat Fan Only Quiet Sleep

Air Handler — 36K BTU
Product Dimensions	49.57″W x 11.10″D x 14.25″H
Mount Type	Wall
Cooling Capacity	36,000 BTU
Heating Capacity	36,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto – auto selects from Cool, Heat or Fan-Only Dry – dehumidify Cool Heat Fan Only Quiet Sleep

Coverage Area
To determine the appropriate BTU capacity needed to cool or heat an area, please refer to the coverage chart below. This chart provides guidance based on the square footage of the area. Note that additional factors, such as insulation quality, ceiling height, and the number of appliances in the room, can impact the required BTU. For further assistance, contact our Sales Team.

Coverage Chart:
- 180-375 Square Feet: 9,000 BTUs
- 376-500 Square Feet: 12,000 BTUs
- 501-750 Square Feet: 18,000 BTUs
- 751-1,000 Square Feet: 24,000 BTUs
- 1,001-1,500 Square Feet: 36,000 BTUs
Additional Considerations:
- Insulation quality
- Ceiling height
- Number of appliances in the room
For personalized assistance, please reach out to our Sales Team.
Handling Line Sets
When installing your MRCOOL system, handle refrigerant lines carefully to ensure optimal performance and prevent damage.

Bending the Copper Lines: Maintain a minimum 4-inch bend radius and use smooth curves instead of sharp angles to protect the lines and ensure proper refrigerant flow.

Avoid Repeated Bending: Bending copper lines more than three times can harden and weaken them, increasing the risk of breakage. Handle with care and minimize adjustments.

For best results, use gradual bends and consult a licensed professional or our support team if needed.
