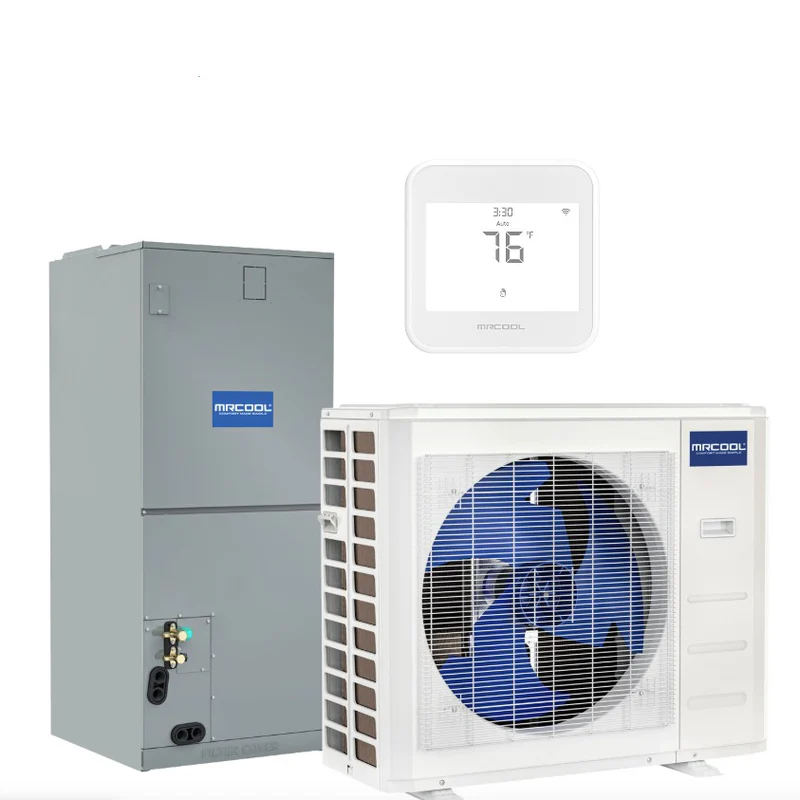

MRCOOL VersaPro 2nd Gen 60K BTU 5 Ton 15.2 SEER2 Central Ducted Heat Pump Split System, MVP-60-HP-230A00-O
$4,185.00
5 Ton MRCOOL® VersaPro® Central Ducted System
- Fast, Free Shipping
- 30-Day Money-back Guarantee
- Payment Methods
Experiencing discomfort in your home can be a significant source of frustration, particularly when you consider the time and financial investment associated with HVAC upgrades. The MRCOOL VersaPro 2nd Gen 60K BTU 5 Ton Central Ducted Heat Pump Split System offers an effective and convenient solution to address all your home comfort requirements.
- High Efficiency: This 5-ton, 60k unit boasts a SEER2 rating of 15.2 and an HSPF2-4 of 8.4, ensuring optimal performance and energy efficiency.
- Cost-Effective Operation:Â Featuring a DC inverter, this system operates efficiently while minimizing utility expenses.
- Easy Installation:Â The unit’s design allows for straightforward installation, compatible with No Vac Quick Connect Line Sets and coupler kits, enabling HVAC technicians to set it up swiftly and effortlessly.
- Eco-Friendly:Â Precharged with environmentally friendly R-454B refrigerant, facilitating a smooth and sustainable installation process.
- Durable Construction:Â Constructed from painted galvanized steel, this unit is built for enduring durability.
- Simple Maintenance:Â Equipped with self-diagnostic features to streamline maintenance tasks.
- Efficient Coverage:Â Perfectly suited for spaces ranging from 2,001 to 2,500 square feet.

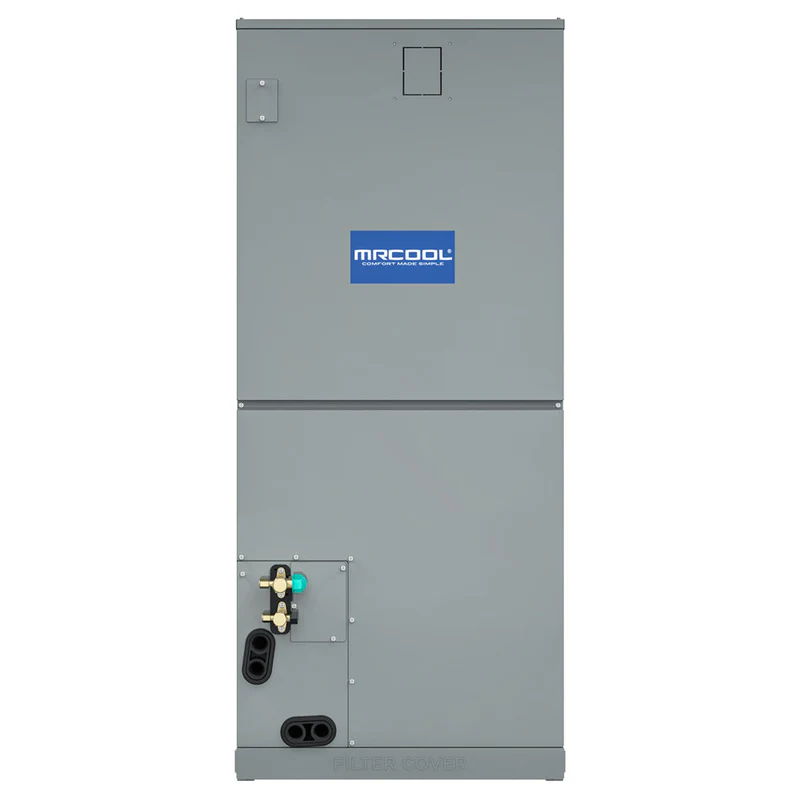

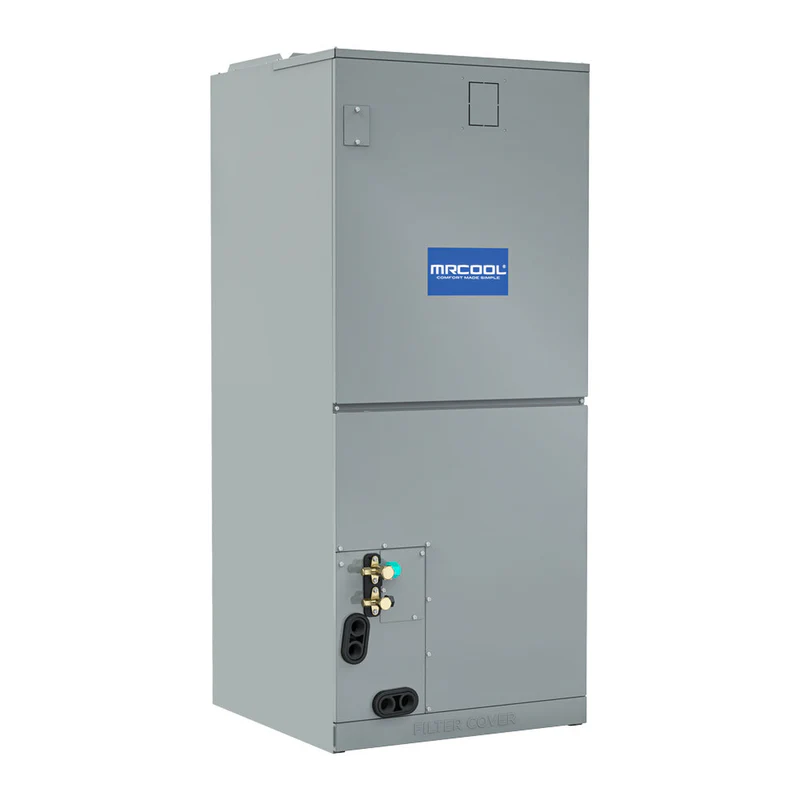

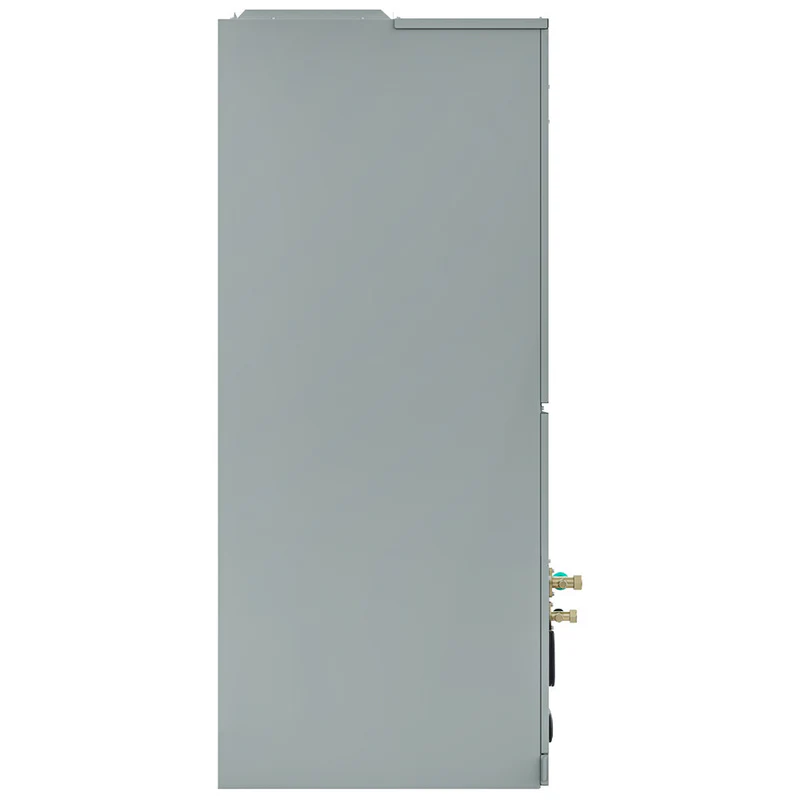

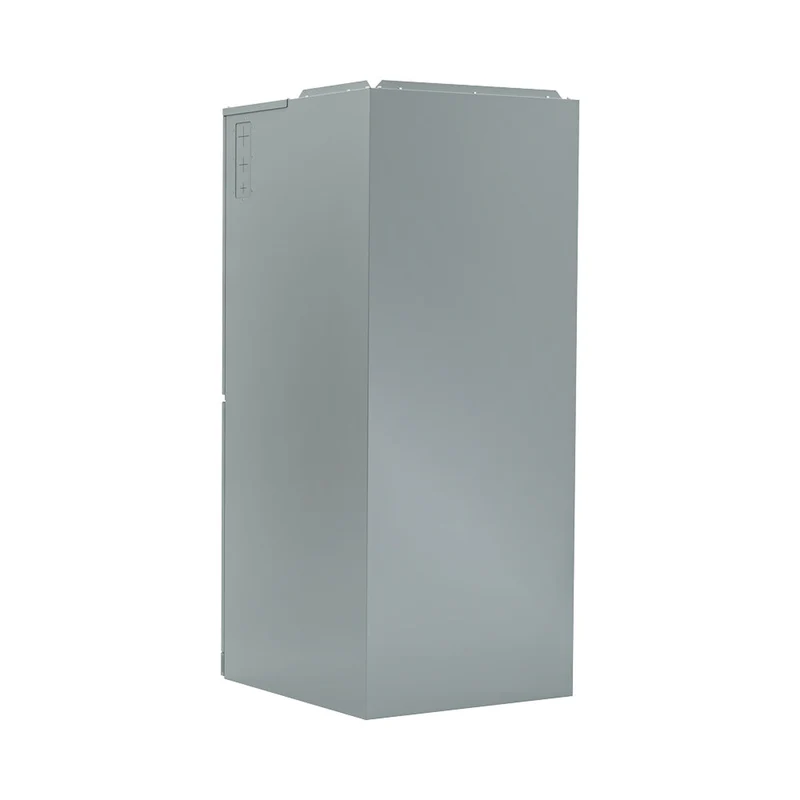

- Flexible Installation:Â The air handler can be configured for various installation orientations, including upflow, downflow, and horizontal positions on both sides.
- Optional Heat Kit:Â Available to enhance functionality and support year-round use.

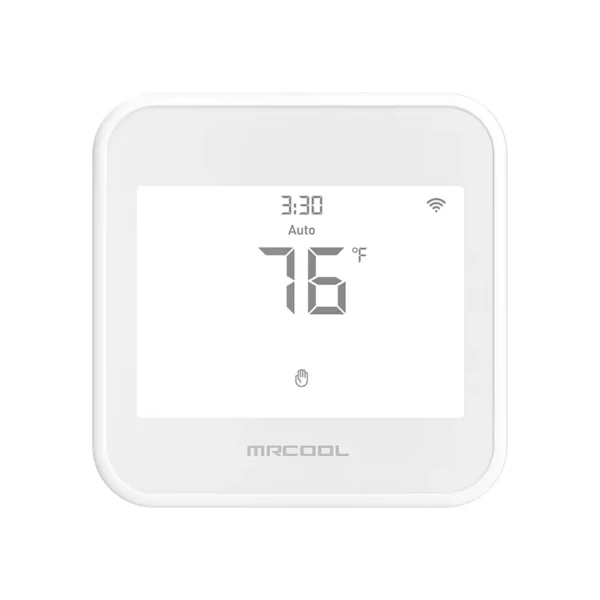

- Convenient Controls:Â Comes with the MRCOOL Smart Thermostat for dependable temperature regulation.
- Peace of Mind:Â Supported by MRCOOL’s 10-year parts and compressor warranty, offering extensive coverage and ease of ownership.
Important Note: The MRCOOL Quick Connect Line Set is not included with these models, but is available for purchase separately.
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Our best Products
-
Specifications and Dimensions

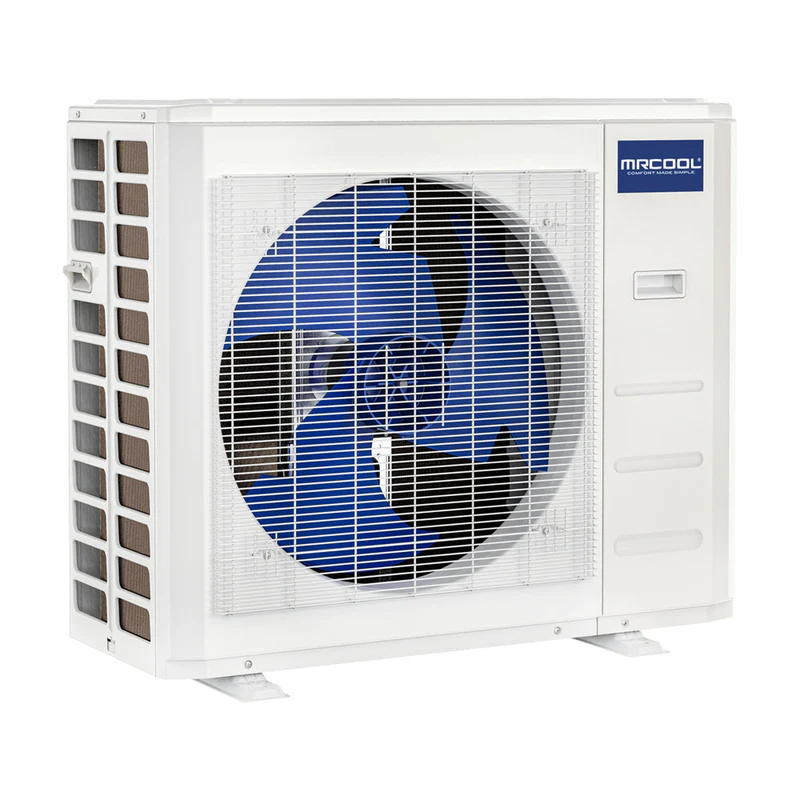

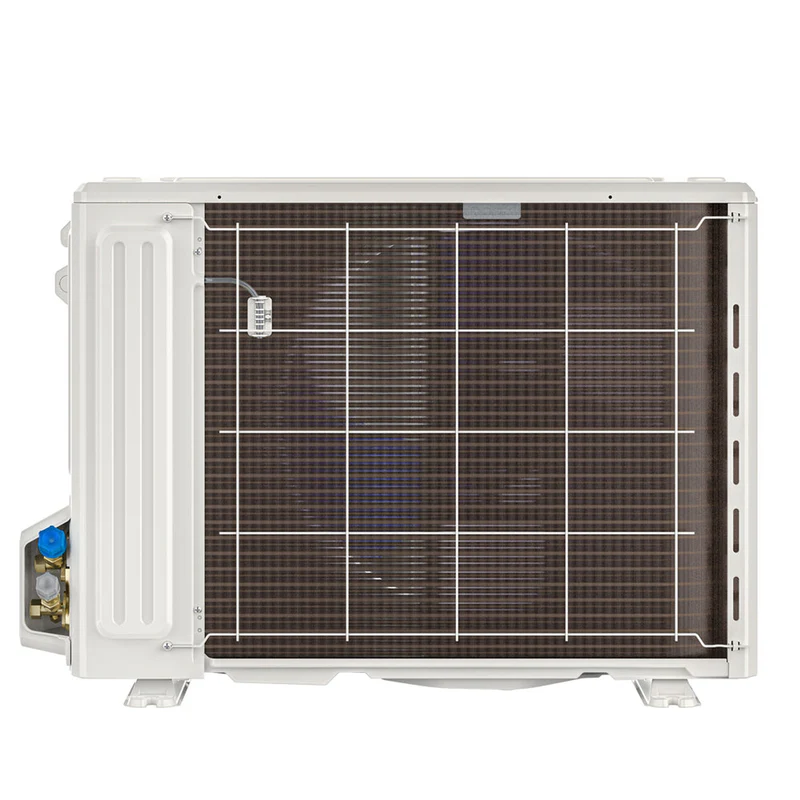

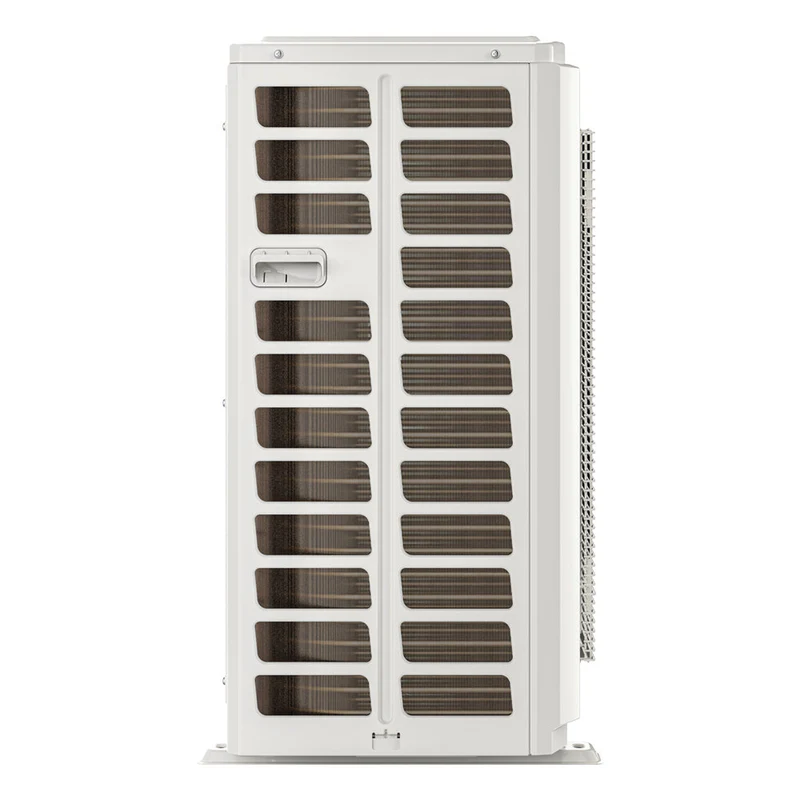

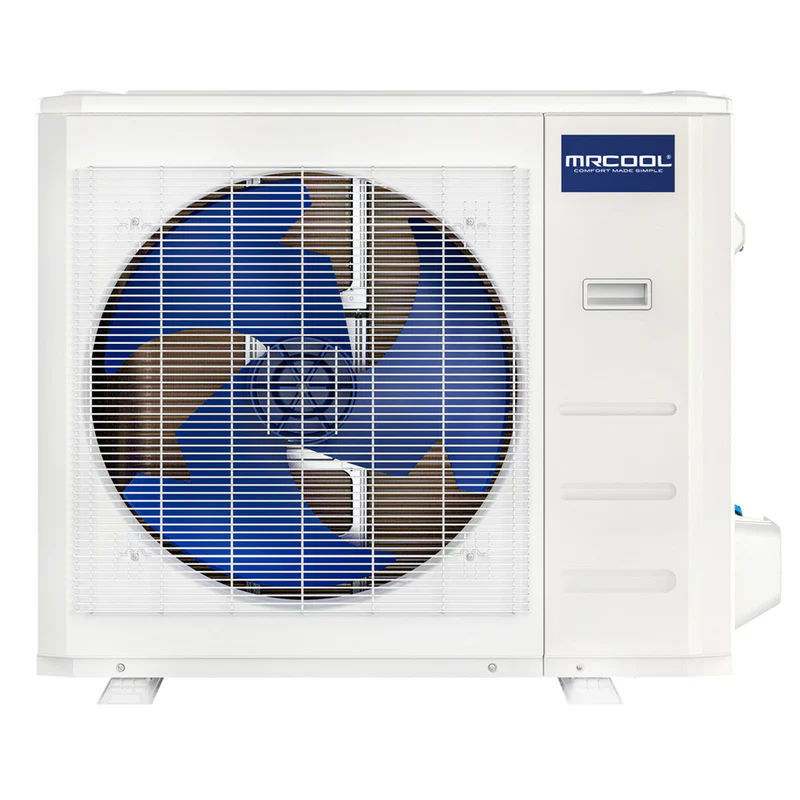

Condenser Dimensions 38.58″ W x 16.34″ D x 38.39″ H Weight 192.90 lbs Electrical Requirements Requires a minimum of 208-230V/60Hz/39-40A (please check your home meets this electrical requirement prior to purchase) Cooling Capacity 54,000 BTU Heating Capacity 54,000 BTU Outdoor Operating Temperature Range -13 °F – 120°F SEER2 15.2 EER2 8.6 HSPF2-4 8.4 HSPF2-5 6.8 Noise Level (Hi/Mi/Lo) 65 dB(A) Refrigerant R454B / 134.04 oz Liquid Line Size 3/8″ Suction Line Size 3/4″ Warranty 10 Years Compressor, 10 Years Parts Air Handler Dimensions 24.49″ W x 21.02″ D x 52.99″ H Weight 162.92 lbs Electrical Requirements Requires a minimum of 208-230V/60Hz/14.5/11.0-15A (please check your home meets this electrical requirement prior to purchase) Mount Type Vertical (Downflow or Upflow)
Horizontal (Right or Left)Cooling Capacity 54,000 BTU Heating Capacity 54,000 BTU Coverage Area 2,001-2,500 square feet SEER2 15.2 EER2 8.6 HSPF2-4 8.4 HSPF2-5 6.8 Noise Level (Turbo/Hi/Mi/Lo/Si) 56.0 / 52.0 / 49.0 / 34.5 / – dB(A) Airflow (TURBO/Hi/Mi/Lo) 1807.00 / 1583.33 / 1359.67 / 1136.00 CFM Refrigerant R454B / 134.04 oz Liquid Line Size 3/8″ Suction Line Size 3/4″ Compatible Heat Kits 10kW – MVPHK10
15kW – MVPHK15
20kW – MVPHK20Warranty 10 Years Parts -
-
Handling Line Sets
When installing your MRCOOL system, handle refrigerant lines carefully to ensure optimal performance and prevent damage.
Bending the Copper Lines: Maintain a minimum 4-inch bend radius and use smooth curves instead of sharp angles to protect the lines and ensure proper refrigerant flow.
Avoid Repeated Bending: Bending copper lines more than three times can harden and weaken them, increasing the risk of breakage. Handle with care and minimize adjustments.
For best results, use gradual bends and consult a licensed professional or our support team if needed.
